Description
The Swirler Nebulizer operates by electrically activating piezoelectric ceramic actuator which then transduces the vibration generated to the adjacent supporting plate and polymer mesh bearing numerous apertures. The vibration actively pushes out the liquid medication by physically breaking surface tension ofthe solution through mesh holes thereby achieving final nebulization.
Silent Sessions: Enjoy whisper-quiet operation (below 25dB) for undisturbed moments of peace during each session.
User-friendly: The Swirler Nebulizer is designed for easy operation, allowing for one-touch activation to ensure convenient use.
Easy to Clean: The Swirler Nebulizer features a simple design for quick and thorough cleaning, ensuring you spend less time on maintenance.
Easy to Carry: The Swirler Nebulizer weighs 80g, making it easy for children to hold with one hand and comes with a portable bag for easy travel.
Technological Characteristics：
The Swirler Nebulizer operates by electrically activating piezoelectric ceramic actuator which then transduces the vibration generated to the adjacent supporting plate and polymer mesh bearing numerous apertures. The vibration actively pushes out the liquid medication by physically breaking surface tension ofthe solution through mesh holes thereby achieving final nebulization. Aerosol generation can subsequently be modulated the vibration frequency that is controlled by the firmware stored within Main Unit to maintain a frequency ofapproximate 120 kHz, nebulization rate of > 0.2 ml/min and a power consumption of 1.5W.
Easy to Carry: The Swirler Nebulizer weighs 80g, making it easy for children to hold with one hand and comes with a portable bag for easy travel.
Silent Sessions: Enjoy whisper-quiet operation (below 25dB) for undisturbed moments of peace during each session.
Easy to Clean: The Swirler Nebulizer features a simple design for quick and thorough cleaning, ensuring you spend less time on maintenance.
User-friendly: The Swirler Nebulizer is designed for easy operation, allowing for one-touch activation to ensure convenient use.
Technology Specification:

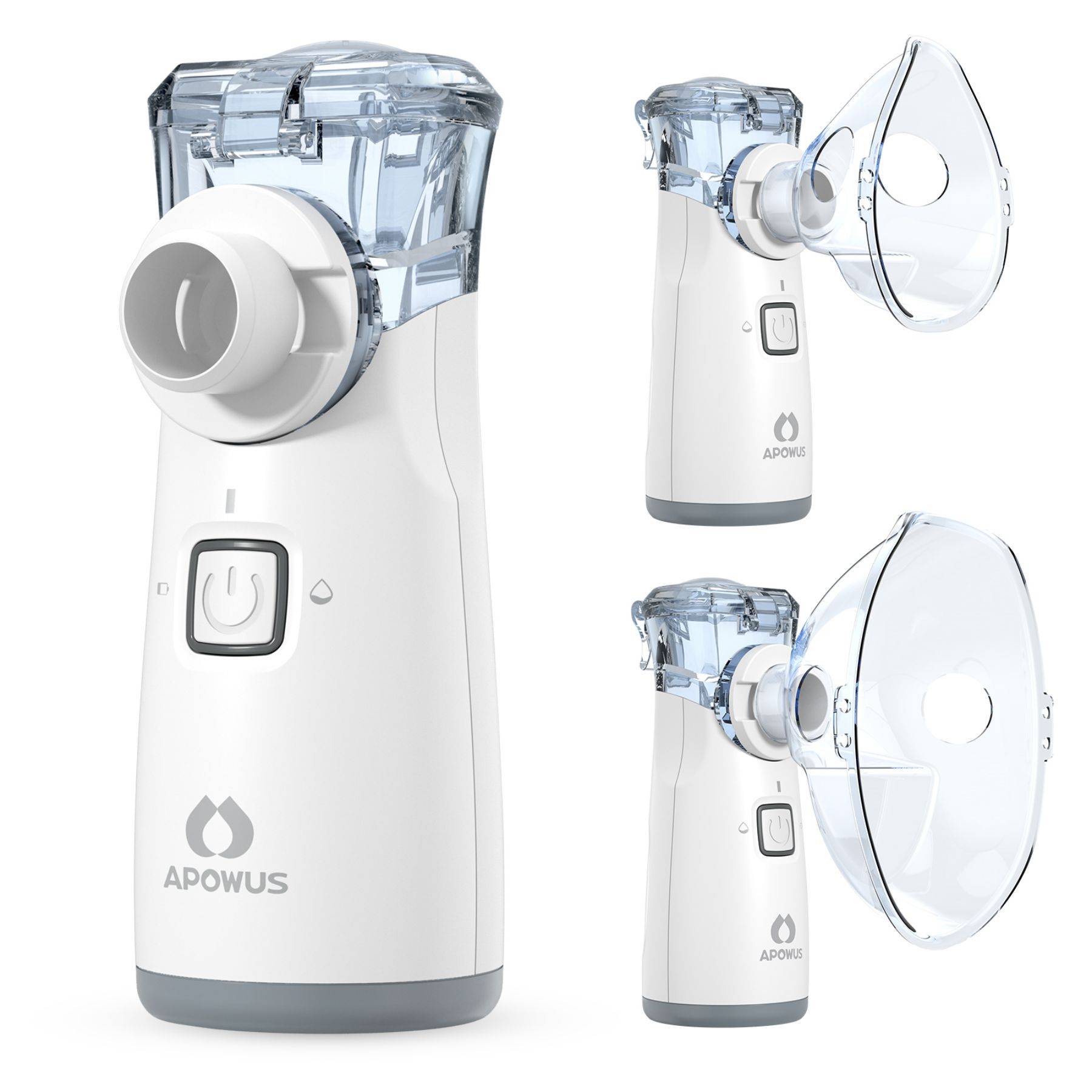

Model Name: The Swirler Nebulizer
Manufacturers: INTERNATIONAL ISOTOPES INC.
Dimensions: 45mm(W)x63mm(D)x123mm(H)
Weight:80g
Partiele Size: 5μm
Indications for use: The Swirler Nebulizer System is an ultrasonic(vibrating mesh) nebulizer system designed to aerosolize medications for inhalation by the patient.
Technology: Vibrating mesh
Patient populations: Pediatric and adult
Accessory: Adult Mask、Child Mask、Mouth Piece、Carry Pouch、Instruction Manual、Certifcation、Warranty Card
|
Device Name: |
THE SWIRLER NEBULIZER |
|
Classification Name: |
NEBULIZER (DIRECT PATIENT INTERFACE) |
|
Product Code: |
|
|
Device Class: |
2 |
|
Regulation Number: |
|
|
Medical Specialty: |
Anesthesiology |
|
Registered Establishment Name: |
|
|
Registered Establishment Number: |
3034521 |
|
Premarket Submission Number: |
|
|
Owner/Operator: |
|
|
Owner/Operator Number: |
9045407 |
|
Establishment Operations: |
Specification Developer |
