The Swirler Nebulizer

The Swirler Nebulizer operates by electrically activating piezoelectric ceramic actuator which then transduces the vibration generated to the adjacent supporting plate and polymer mesh bearing numerous apertures. The vibration actively pushes out the liquid medication by physically breaking surface tension ofthe solution through mesh holes thereby achieving final nebulization.

$49.99
Quantity

Description

Device Description:

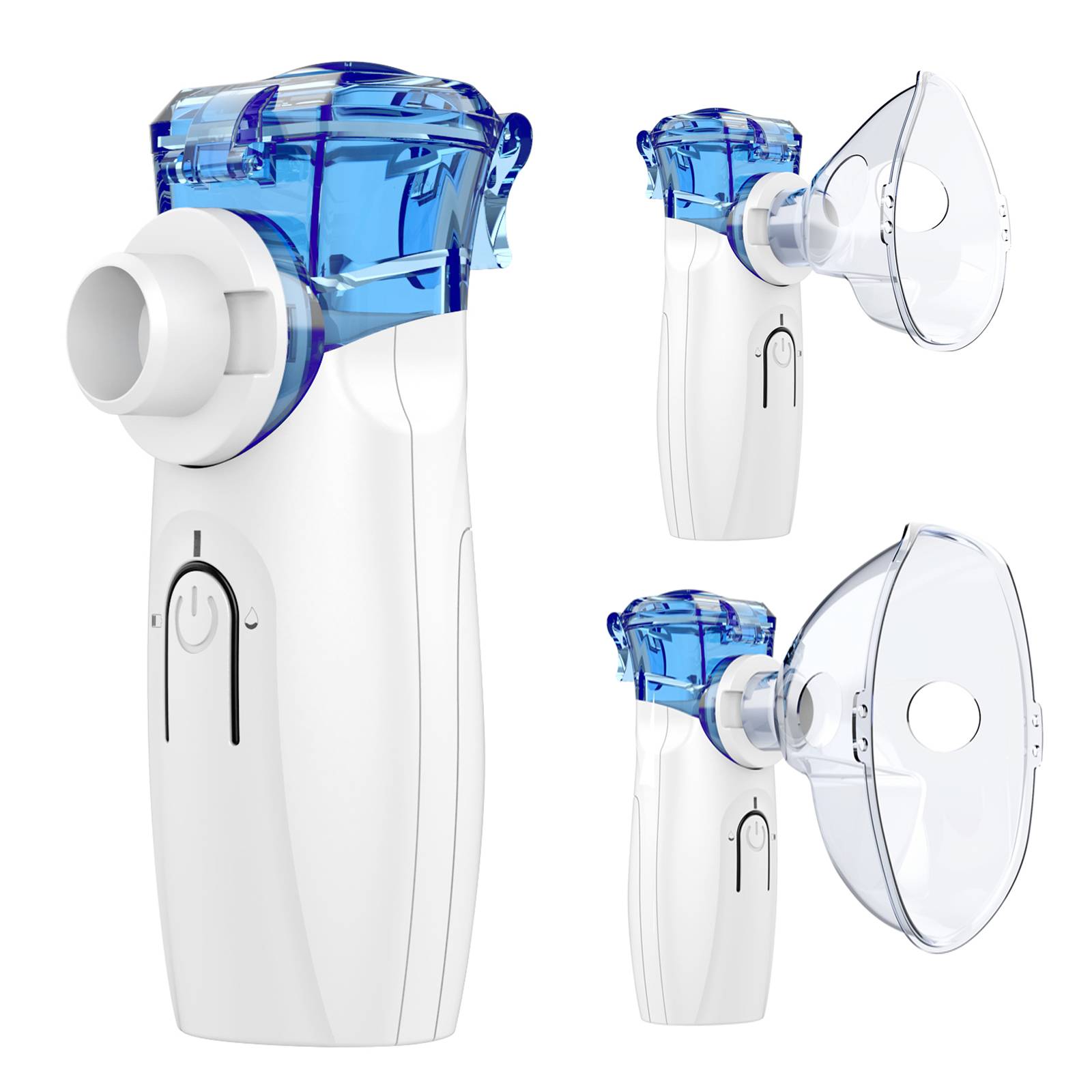

The Swirler Nebulizer is a small, compact, and battery powered potable nebulizer which transforms liquid medicines into aerosol form and delivers directly to patient for inhalation, It makes patient's respiratory treatment easier and more convenient.

Technological Characteristics：
The Swirler Nebulizer operates by electrically activating piezoelectric ceramic actuator which then transduces the vibration generated to the adjacent supporting plate and polymer mesh bearing numerous apertures. The vibration actively pushes out the liquid medication by physically breaking surface tension ofthe solution through mesh holes thereby achieving final nebulization. Aerosol generation can subsequently be modulated the vibration frequency that is controlled by the firmware stored within Main Unit to maintain a frequency ofapproximate 120 kHz, nebulization rate of > 0.2 ml/min and a power consumption of 1.5W.

Easy to Carry: The Swirler Nebulizer weighs 80g, making it easy for children to hold with one hand and comes with a portable bag for easy travel.
Silent Sessions: Enjoy whisper-quiet operation (below 25dB) for undisturbed moments of peace during each session.
Easy to Clean: The Swirler Nebulizer features a simple design for quick and thorough cleaning, ensuring you spend less time on maintenance.
User-friendly: The Swirler Nebulizer is designed for easy operation, allowing for one-touch activation to ensure convenient use.


Technology Specification:

Model Name: The Swirler Nebulizer

Manufacturers: INTERNATIONAL ISOTOPES INC.


Dimensions: 45mm(W)x63mm(D)x123mm(H)

Weight:80g

Manual.PDF

Partiele Size: 5μm


Indications for use: The Swirler Nebulizer Systein is an ultrasonic(vibrating mesh) nebulizer system designed to aerosolize medications for inhalation by the patient.

Technology: Vibrating mesh

Patient populations: Pediatric and adult
Environment of use: Home,hospital,sub-acute care
Contraindications: None
Nebulizer components cleanable: Yes
Vibrating Capacity:120kHz
Reservoir size: 8.0ml
Nebulization Rate:≥0.2 ml/min
Operation condition:10°C ~40°C，Max 80% RH
Storage condition:-20°C ~55°C,Max 80% RH
Power source:Two AA batteries / AC Adapter AC 100~240V(50/60Hz/DC 3V~5V)
Power consumtion:1.5W

Accessory: Adult Mask、Child Mask、Mouth Piece、Carry Pouch、Instruction Manual、Certifcation、Warranty Card

510(k) Number: K952910

Device Name：THE SWIRLER NEBULIZER

Manufacturer: INTERNATIONAL ISOTOPES INC.

Device Name:

 THE SWIRLER NEBULIZER

Classification Name:

NEBULIZER (DIRECT PATIENT INTERFACE)

Product Code:

CAF

Device Class:

2

Regulation Number:

868.5630

Medical Specialty:

Anesthesiology

Registered Establishment Name:

INTERNATIONAL ISOTOPES INC.

Registered Establishment Number:

3034521

Premarket Submission Number:

K952910

Owner/Operator:

INTERNATIONAL ISOTOPES INC.

Owner/Operator Number:

9045407

Establishment Operations:

Specification Developer
